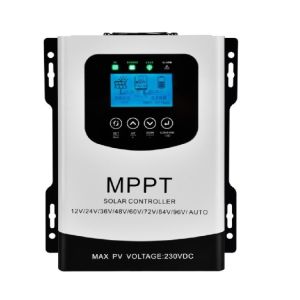

Lithium user battery solar mppt controller 12v 24v 36v 48v 72v 96v MPPT controller 30A max PV 230V mppt solar charge controller
| Model | 30A /40A | 50A /60A |
|---|---|---|
| Charging Mode | MPPT automatic maximum power tracking | |
| Charging Method | MPPT tracks maximum power, fast charge, balanced charge, and float charge. | |
| Lead Acid | (12V/24V/36V/48V/96V Auto +Adjustable 12V/24V/36V/48V/60V/72V/84V/96V) | |
| Gel | 12V/24V/36V/48V/60V/72V/84V/96V | |
| LifePo 4 | 12V/24V/36V/48V/60V/72V/84V/96V | |
| Li-ion | Single voltage 3.7 * number of strings (2 strings -45 strings adjustable) | |
| USER | Adjustable limit voltage for equal charge, float charge and DC discharge: 8V -170V | |
| With lithium battery activation function | With photovoltaic input, there is charging voltage (activate lithium battery), can be used without battery DC output | |
| PV maximum open circuit input voltage | 0--230V | |
| The charging current is adjustable | 0—30A 0—40A | 0—30A 0—40A |
| Direct charging current output function | DC continuous output 25A | DC continuous output 60A |
| Temperature compensation | According to the temperature of the battery, the charging voltage and current are automatically compensated to prolong the battery life | |
| Display communication | LCD display with touch button: (generating capacity / photovoltaic voltage / battery voltage / charging current / power / operation status) Chinese and English display Settings: (battery type, charging current, return to factory) | |
| Working environment temperature | -20℃ ~ 40℃ | |
| Protection level | IP 21 | |
| Altitude | 0 ~ 3000m | |
| Product size | 202x215x100mm | 218x265x100mm |
| N.W. / G.W. | 1.9KG/2.5KG | 2.6KG/3.5KG |
| Packing | Box |
| PCS/CTN | 8pcs |
| Carton Dimension | 575*480*290mm |
| Unit Weight | 1.9KG |
| Net weight (N.W) | 15.5KG |
| Gross weight(G.W) | 18.8KG |
